MACHINES FOR THE ELECTRICAL WIRE AND CABLE INDUSTRY

Equipment built in the USA for wire and cable production. Wire and cable extrusion lines or individual components. From wire payoffs to parallel axis spoolers, we build heavy duty modern equipment. Precision up to date extruder controls designed for the tightest tolerances. When we build your next line, you can be assured of reliable production of the wire payoff, cooling troughs, belt wrap capstan, tension dancer, take up spooler and all the components to make a productive line. We also build twister cablers, wire rewind machines, wire powered payoffs, wire footage counters, dual reel parallel axis take-ups, automatic dual reel take up, automatic dual reel spooler, and auxiliary components for wire extrusion, wire stranding and wire cabling. And we rebuild equipment from suppliers like Clipper spooler, Dynamex cabler, Davis-Standard spooler, AW Machine LLC take up, Thermoplastic Engineering cabler and Wire and Plastic Machinery equipment.


Effective Production Solutions Automatic 18" dual reel take-up and parallel axis spoolers for continuous wire and cable winding. Eliminate downtime and increase efficiency with our advanced wire spooling equipment.

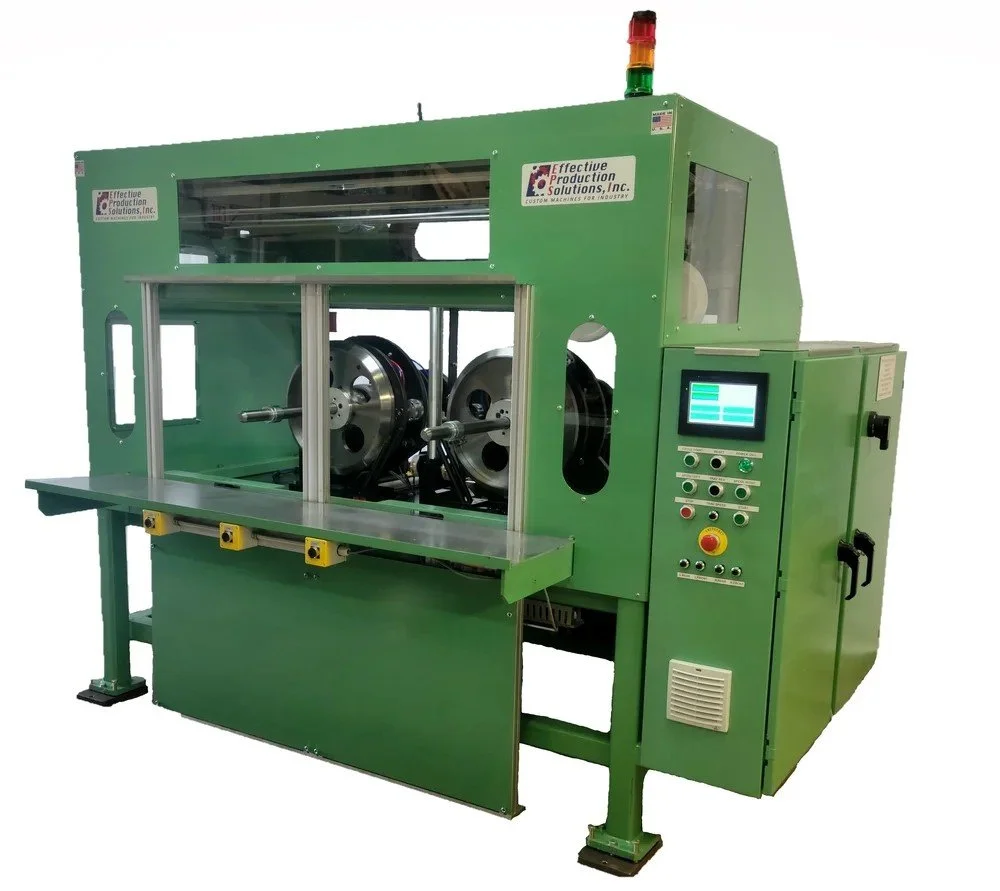

Pictured is our Dual reel take up for continuous spooling online or offline

Standard Wire Machines

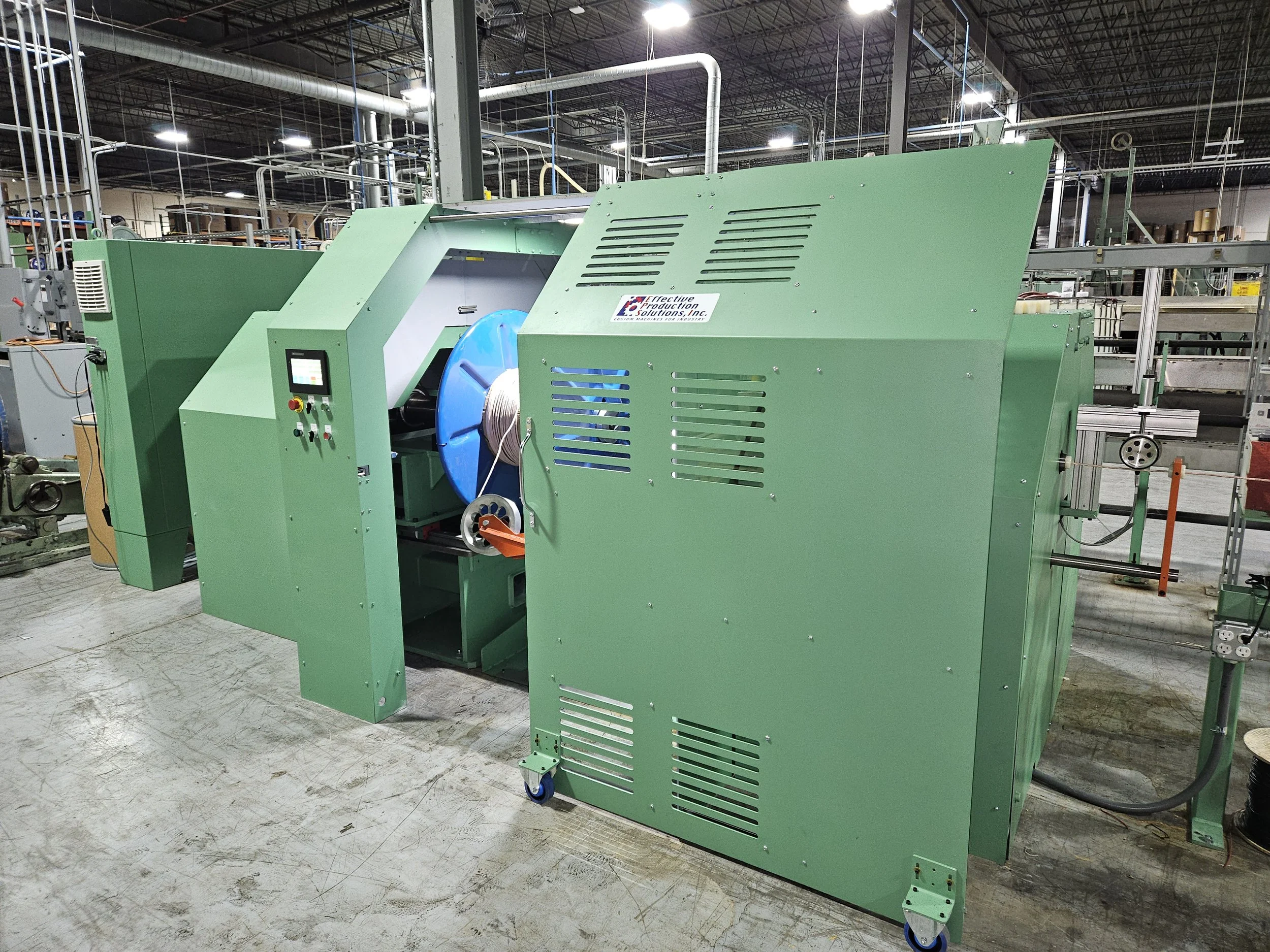

36 Inch Cabler

Effective Production Solutions Heavy-duty single twist strander/buncher for wire and cable production. Our 36-inch cablers increase efficiency for your most demanding projects.

Single twist wire strander

Description:

Heavy duty wire twister, 36” diameter x 20” wide x 5” bore spool, 800 RPM Flyer, Internal hydraulic lift, Precision electronic lay control and simple safe spool clamp for smooth operation

Double twist buncher


Our double twist buncher/cabler is perfect for distributors looking to bunch 2 to 4 spools of wire onto a large spool. Digital lay control and smooth fast operation at a reasonable cost

Double twist cabler

Description: Two to four full spools of single conductor wire are pulled from inside of the bow to the external take up. Electronic lay control, traverse, footage counter, 18” take up spool and 2500 twist per minute. Complete machine ready for production. Perfect for wire distributors looking for value added operations.



Belt Wrap Capstan for an extrusion line

Wire and cable capstan + wire and cable belt wrap capstan + Belt Wrap Capstan + capstan wire production

Capstan

Description: Made in the USA Belt Wrap Capstan with safety system, 4-speed gear box, 24” x 1” wide capstan and 5 HP motor.


Unwinding/winding machine

Wire rewinder + Rewind machine + winding machine

winding machine

Description: Dual shaft wire rewind machine


High Speed Footage Counter



Description: Footage Counter for counting online or offline


Wire Dancer

Low cost Fine wire dancer + dancer for wire + high speed dancer + tension dancer+ high speed tension dancer + Tension dancer for wire production

Description: Wire dancer for 14-gauge to 24-gauge, 2000 ft a minute with broken wire switch, adjustable tension and string up lever. It can be ordered right to left or left to right.


Wire dispenser or Wire payout

Simple wire pay-off + wire payout + wire dispenser + payoff for rewinding wire + tension controlled dancer + dual shaft payoff for wire

Description: Payoff with Electromagnetic Brake and Control and Small Spool Shaft with Adjustable Magnetic Tensioner






Screw Extractor

extruder screw extractor + extruder screw remove + custom extruder screw extractor

Description: Screw Extractor for removing stuck screws


Tape Payoff

Description: Tape Powered Payoff, cabling application


Wire Tensioner



Description: Extrusion Line Bare Wire Tensioner



8 Head Payoff

Description: 8 Head Payoff

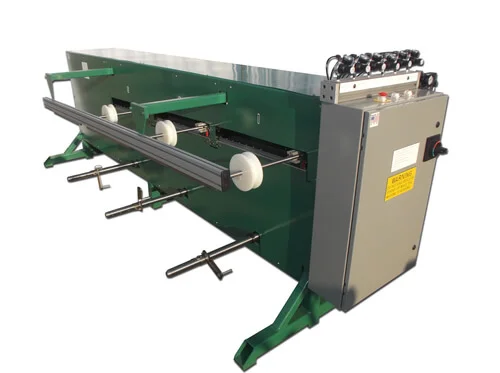

Six Head Powered Payoff

Description: Powered Payoff for cabling, bunching or twisting machine


Powered Payoff

Description: Single Head Heavy Duty Powered Payoff with hydraulic lift, individual right to left arm control and 7.5 HP gearmotor.


Heavy Duty Dual Reel Parallel Axis Take-up

Description: High Speed Wire Spooler online or offline


Extruder Control Panel

Description: Extruder Control Panel


Extruder Line

Description: Extruder Line with controls, main extruder and two adjustable auxiliary extruders (piggies)


Air Wipe Boxes

Description: Air Wipe Boxes to remove water from the wire after the cooling troughs on an extrusion line


Multi Pass Wire Trough on extrusion line

Description: Multi Pass Wire Trough for cooling extruded wire


Stretch Wrap Machine

Description: Stretch Wrap Machine for wrapping spools of wire, spool stretch wrap machine
